Our Theatre



view from stage.png

The Stage

Our stage is a traditional proscenium with an apron extension and false proscenium legs. There are 2 exits located downstage of the curtain line; one stage left and one stage right. Our stage is fully accessible.



Stage Dimensions:

False Proscenium Width: 35'-0"

Proscenium Width: 30'-0"

DS Apron Edge to Plaster Line Depth: 8'-0"

Down Stage Apron Edge to Cyc Depth: 32'-0"

Stage Height: 2' -1 1/4"

SL Curve Floor Width: 9'-9"

SR Floor Depth from Last Seat to edge of stage: 18'-6"

SL Floor Depth from Last Seat to edge of stage: 14'-4"

US Floor Width from SR to SL curve: 33'-8"

DS Floor Width from Last Chair SR to Last Chair SL: 43'-3"

Legs are Hung 4'-0" from onstage to the end of pipe

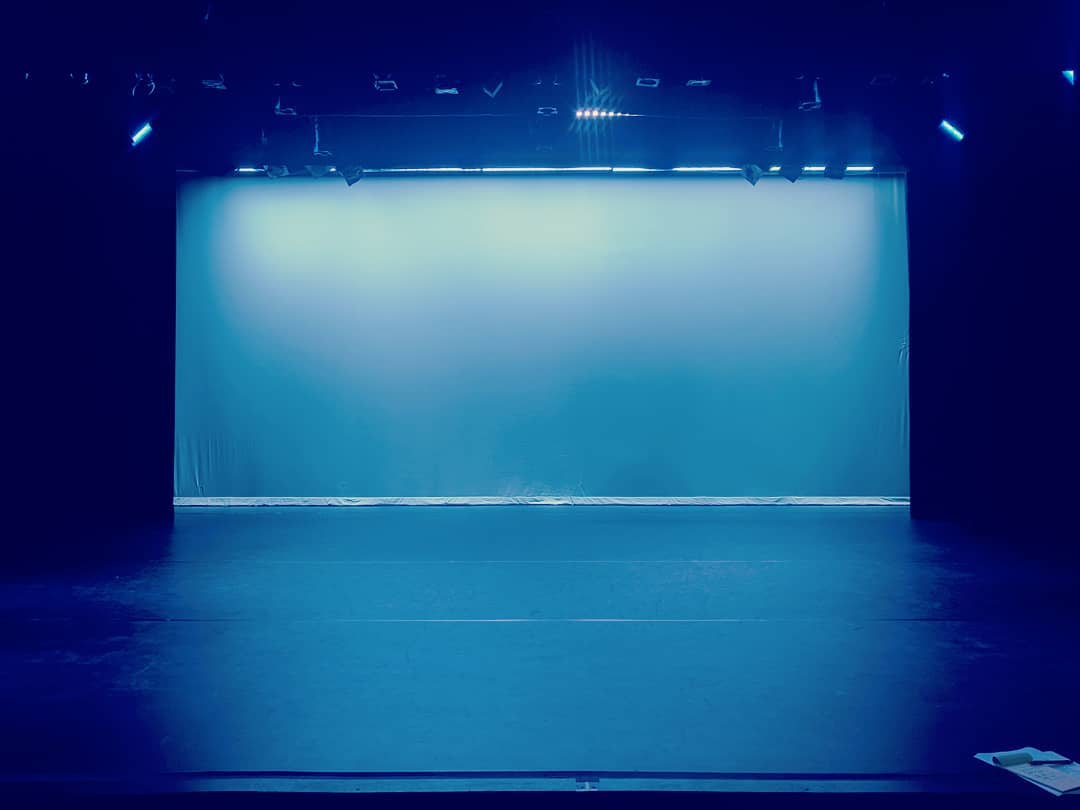

41244120_380673832471848_7342063863128391680_o (1).jpg

The Stage Floor



The stage floor has a black Masonite top and a Homeostat layer underneath. The practical maximum depth of the stage (from downstage edge to the cyclorama) is 32 feet. We have black Harlequin Cascade Marley that can be laid down. There is a charge for removal and restore.


Screenshot (22).png

The House



There are a total of 250 seats, 180 are raked seats and 70 seats are free standing on the house floor. The lighting booth is located at the back of the house on center line with a full view of the stage. The booth comes equipped with stage manager monitors, glass windows that may be opened upon request. Our house is fully accessible.

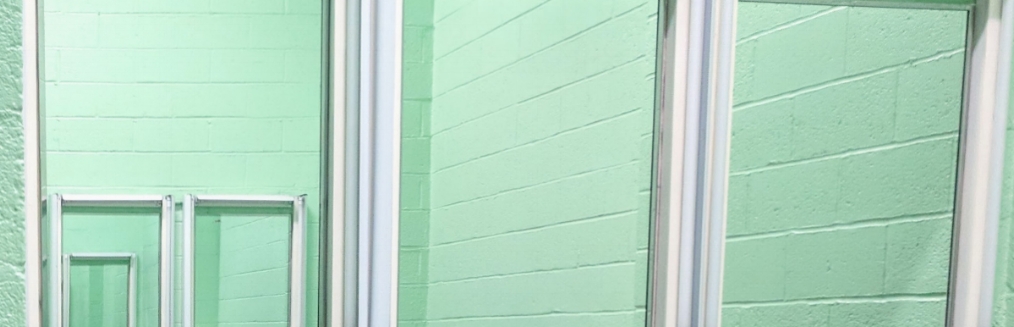

Backstage

We have two large dressing rooms both located stage left. Each one accommodates 10-15 people; both are equipped with toilets, hot and cold sinks, and lit make-up mirrors. Both come equipped with video and audio monitors of the stage. There is also an ironing board, and iron and a steamer in each dressing room. A call board is located between the two dressing rooms and a green room is located down the hall. The dressing rooms are the wings are fully accessible.




The Stage Specs



Stage Rigging & Dressings:

  • Single Purchase Counter Weight System Pipe Lengths 36’

  • SL Ladder pipe length 22’9” line set # 12A

  • SR Ladder pipe length 21’6” line set # 16A

  • 3 Pair of Black Velour Legs (no fullness) 8’6”x16’9” 2

  • Pair of Black Velour Travelers (fullness) Travelers are operated by hand, SL :

    Main Curtain 11’-1 ½”

    Upstage Traveler is 20’-3 1/2 “

  • BO Curtain Velour (no fullness) 35’x16’

  • Cyc 36’x16’




Rigging Measurements:


From Plaster Line Set # Description
24’-0” 17 Free Pipe
SL 16A SL Tree
21’-3” 16 CYC+BO Curtain
20’-3” 15 5th LX
19’-6” 14 Black Traveler
18’-9” 13 Black Scrim
SR 12A SR Tree
16’-7” 12 4th LX
15’-3” 11 Legs
14’-6” 10 Border (NFG)
12’-3” 9 3rd LX
10’-3” 8 Legs & Border
9’-6” 7 NFG
7’-3” 6 2nd LX
5’-3” 5 Legs
4’-6” 4 Border
3’-6” 3 NFG
2’-8” 2 1st LX
0’-6” 1 Main Rag

Screenshot (39).png
